The wireless alarm system compact easy 200H is intended for use in private and small business applications. The intruder alarm control panel is suitable for surveillance of partitions on medium-security sites in compliance with VdS standards (class A), VdS Home, and VDE 0833.
The compact easy also fulfills all current requirements of the European standard EN 50131-3, Grade 2.
Optimum protection with a high level of reliability
- against intrusion
- against fire
- against unauthorized access
- against damage such as water or gas leakage
The intruder alarm control panel combines all installation types
- Conventional cabling
- Modern BUS-1 technology
- Wireless connection
The wireless alarm system is pre-assembled and parameterized. Whether you wish to install an alarm system in your building that already exists, during renovation or as part of a construction of a new building, the TELENOT alarm system can be adapted to suit your requirements.

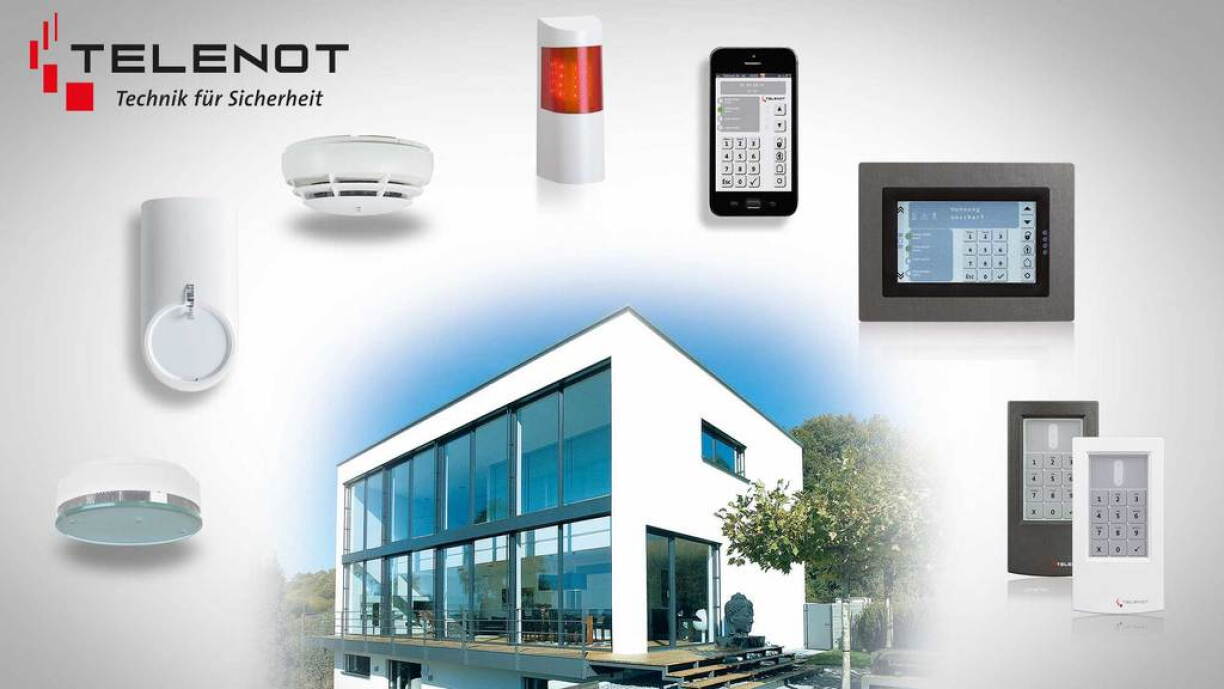

The TELENOT alarm systems are modular, which means that the number and version of components, motion detectors, smoke alarm devices, access control readers, glass-break detectors, etc. can be tailored to your needs. This also lets you to implement subsequent expansions in a simple way. Furthermore, TELENOT alarm systems offer up to 16 reliable smart home functions. The smart home functions are operated directly via the touch keypad BT 800 or the alarm system app BuildSec. The switching functions let you selectively control the doors, gates, blinds, lighting, or other devices. The additional parameterizable automatic smart home functions offer even greater comfort. The automatic functions allow you to set the alarm system and simultaneously switch off heating, for example, when leaving the house. When you unset the alarm system on your return, the heating and the corridor lighting is switched on. All smart home functions are parameterized directly via the intruder alarm control panel compact easy.
A TELENOT alarm system offers:
* Up to 16 smart home functions, e.g.:
− Switching the heating on and off
− Switching the outside light on and off
− Opening and closing the garage door
− Opening and closing blinds
− Switching the pond pump on and of
* All smart home functions in the house can be managed via touch control pane
* All smart-home functions can be called up by the alarm systems app on your smartphone or tablet wherever you are (even when you are abroad, provided you have a network connection)
* Message about device faults, e.g.:
− The refrigerator door is open
− The deep freezer is losing cooling capacity
− The washing machine is leaking water
− The heating pump has failed
− Gas is leaking
Nice to operate – Touch keypad BT 800.
The elegantly designed touch keypad BT 800 is characterized by its modern design. All operating states are shown via the brilliant capacitive touch-operated panel with a glass plate.
The intelligent and intuitive menu makes operating of your alarm system simple and convenient.
Integrated loudspeakers are used for audible acknowledgment of operating proceduresand alarms. Six diff erent color schemes can be chosen for the display. The brightness can be adjusted in 10 steps. In addition, a power-saving mode can be set. The touch keypad BT 800 is integrated or fitted remotely depending on the package version.
Movements registered – Motion detector comstar VAYO pro.
TELENOT motion detectors comstar VAYO pro are used for surveillance of indoor facilities.
The range of the motion detectors is between 15 m and 25 m depending on type. They are positioned according to room size and number of rooms. Simply plan the corresponding number of motion detectors for your bedroom, child's bedroom, work room, living room, kitchen, or halls.
A selection of 16 design covers in a variety of colors is available for the comstar VAYO pro. Using this cover the detector can be integrated to the interior design of any room.
The design cover can be fi tted onto the detector comstar VAYO pro using click technology. The motion detector comstar VAYO pro uses mirror optic to detect infrared heat radiation, such as that emitted by the human body. The mirror optic divides the surveillance area into cone-shaped sectors. Human movement across a sector is detected. In this way, rooms and buildings can be reliably secured against intruders. The “pro” motion detectors from TELENOT operate using the specially developed XTRAP signal processing. It off ers excellent protection against false alarms as well as outstanding detection characteristics. Alarm criteria can be eff ectively distinguished from faults.
At the same time, power consumption is reduced to a minimum. There are three connection types for the motion detectors comstar pro / comstar VAYO pro and the alarm system control
panel available:
Wireless
The wireless version is ideal for existing buildings, particularly when a system needs to be installed quickly with virtually no soiling. The following versions are suitable for newly constructed buildings where cables can still be laid without diffi culty:
Conventional cabling
The detectors have an output relay for connection to conventional signal line inputs.
BUS-1 connection
The detectors are connected via the BUS-1.

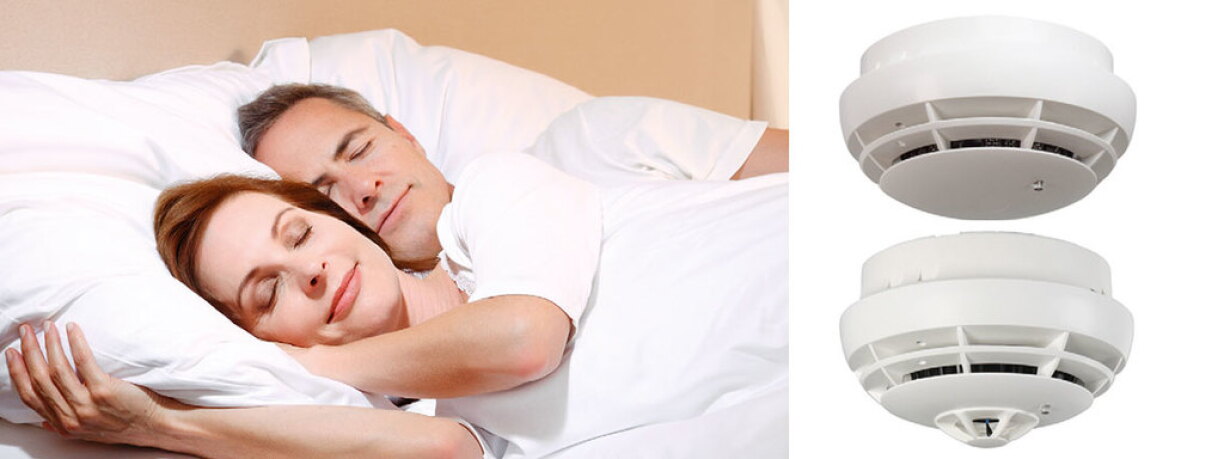

Awoken in good time – Smoke alarm devices in various designs.
TELENOT smoke alarm devices and heat alarm devices let you sleep in peace and keep you and your family safe.
TELENOT smoke alarm devices detect smoke that is emitted from smoldering or open fi - res. If smoke enters the measuring chamber, the alarm device sounds an early audible alarm at the mounting location (bedroom, hall, etc.). The alarm message is also reported to the alarm system control panel. A smoke alarm device covers an area of around 60 square meters at a mounting height of up to six meters. TELENOT heat alarm devices detect when a specifi c thermal limit value is exceeded and sound an audible alarm at the mounting location. The detectors are particularly suitable for special areas such as the bathroom or kitchen. The alarm message is also reported to the alarm system control panel. The heat alarm device HDv 3002 TS covers an area of around 40 square meters at a mounting height of up to six meters.
The fire detectors are wirelessly connected to the alarm system control panel, thus eliminating the need for time-consuming and messy cable installation.
The wired variant is ideal for simple installation in new buildings.

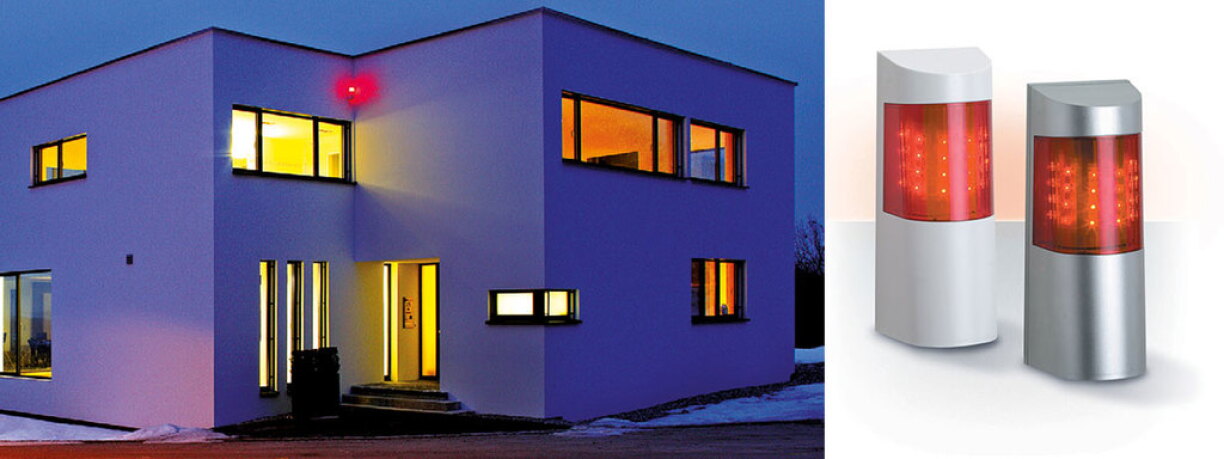

Visual and audible warnings – External alarms via warning device.
The visual-audible external alerting is intended to deter intruders by means of loud audible and visual alarms.
At the same time, the break-in or a hazardous situation is brought to attention of neighbors and the general public. A visual alarm also helps assistance personnel to find their way. If an intruder enters the building while the owners are absent, the warning device also warns the returning owners not to put themselves in immediate danger.
Detecting gas and water leakage – Little watchdogs and life-savers.
Flood detectors,
protect you from costly water damages. The flood detector from TELENOT uses four gold-plated electrodes to detect water ingress and rising water, for example, if a washing machine hose bursts. It helps to prevent expensive damages by giving you an opportunity to take immediate action. The flood detector is mounted on the floor. The alarm message is transmitted to the alarm system control panel and audibly indicated.
Depending on the specific conditions, the connection to your alarm system control panel can be wireless or via cable.
Gas detectors,
are used for surveillance of rooms in which systems and appliances that use flammable gases such as propane, methane and butane as well as city gas and natural gas are operated.
Two externally visible LEDs indicate the standby and alarm condition. If the permissible gas concentration is exceeded, an alarm is triggered. An audible warning is issued and a red LED on the gas detector lights up. The alarm message is also transmitted to the alarm system control panel.
Depending on the specific conditions, the TELENOT gas detector is connected wirelessly or using cable.
Temperature detectors,
measure the temperature in indoor premises. Two independent limit values can be set within the range of -30 °C to +50 °C. This way, the detectors are equally suitable for surveillance of cold storage rooms and wine cellars as well as boiler rooms.
Ideal for vacation homes: When properly installed, they can be used for linking and remote activation of heating systems.
